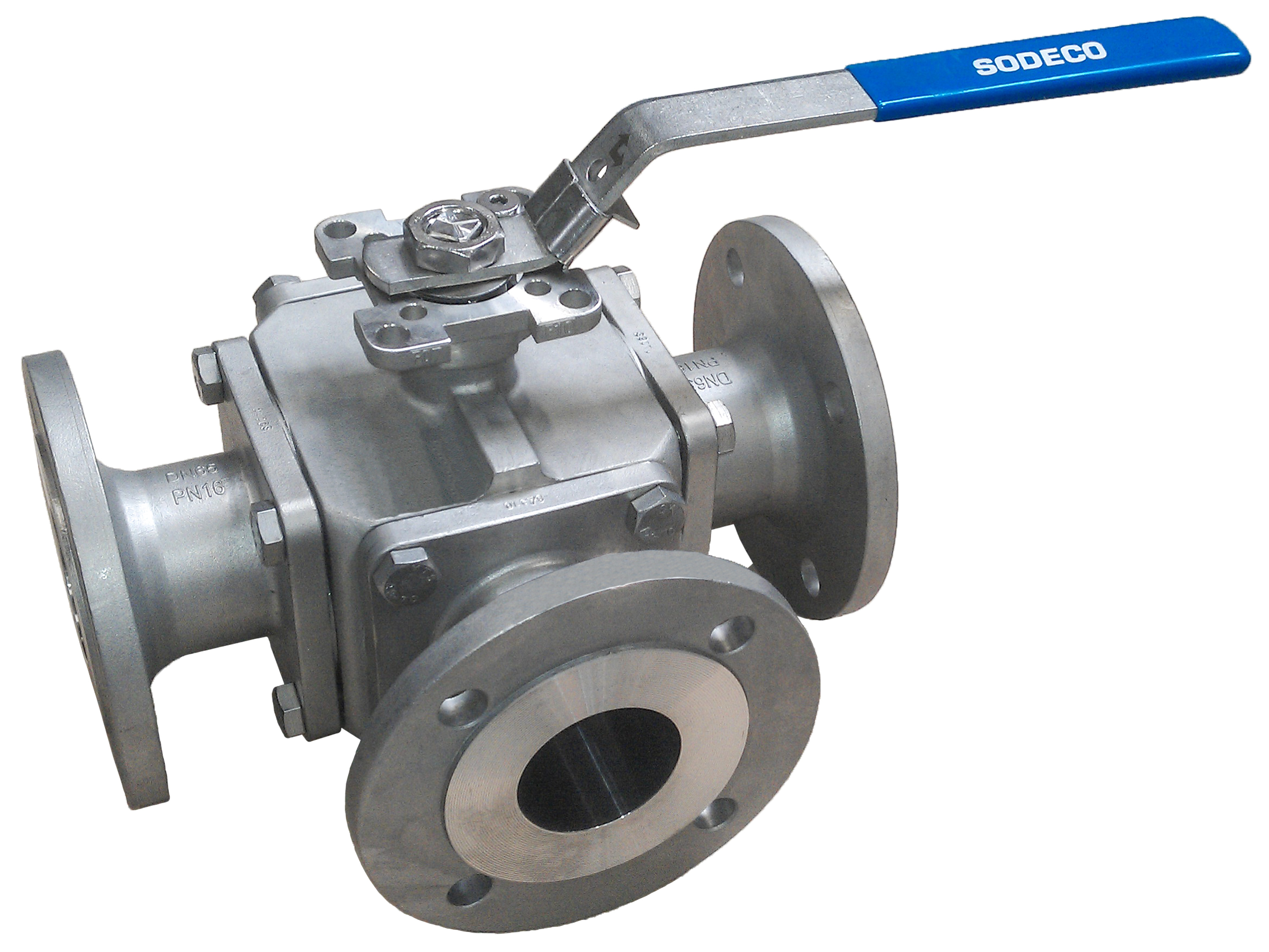

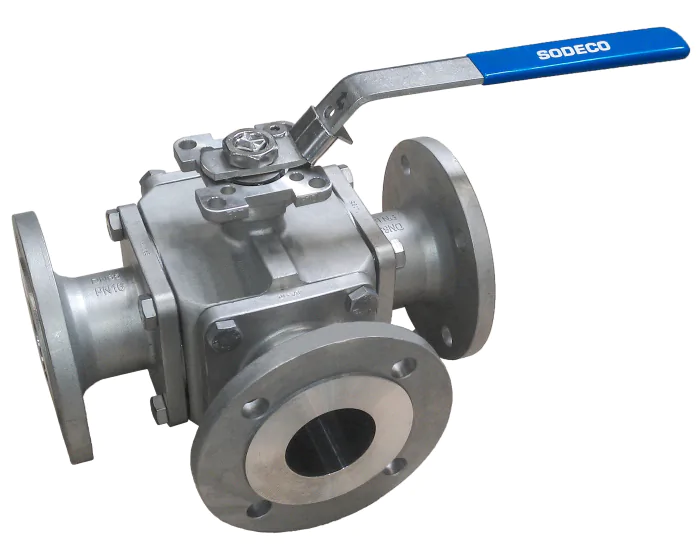

3-way full-bore floating ball valve, ASTM A351 CF8M body, AISI 316 ball, L-port, PTFE/glass fibre seats, flanged PN16/40 (DN15-50) / PN16 (DN65-100), ISO mount, SS lever with lock. Max: 40 bar (DN15-50), 16 bar (DN65-100).
| Specification | Value |
|---|---|
| DN | DN15 - 1/2'' |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| DN15 - 1/2'' | V33H6IIRL015 | S1008236 |
€458.41
(excl. btw)
|
add to cart |
| DN20 - 3/4'' | V33H6IIRL020 | S1008237 |
€598.69
(excl. btw)
|
add to cart |
| DN25 - 1'' | V33H6IIRL025 | S1008238 |
€714.09
(excl. btw)
|
add to cart |
| DN32 - 1''1/4 | V33H6IIRL032 | S1008239 |
€843.36
(excl. btw)
|
add to cart |
| DN40 - 1''1/2 | V33H6IIRL040 | S1008240 |
€1,182.73
(excl. btw)
|
add to cart |
| DN50 - 2'' | V33H6IIRL050 | S1008241 |
€1,511.19
(excl. btw)
|
add to cart |
| DN65 - 2''1/2 | V33H6IIRL065 | S1008242 |
€2,170.81
(excl. btw)
|
add to cart |
| DN80 - 3'' | V33H6IIRL080 | S1008243 |
€3,144.61
(excl. btw)
|
add to cart |
| DN100 - 4'' | V33H6IIRL100 | S1008244 |
€5,161.59
(excl. btw)
|
add to cart |
